Description
- uncoated or Teflon-coated stainless steel spiral
- sheath marked with positioning bands
- various diameters and length available

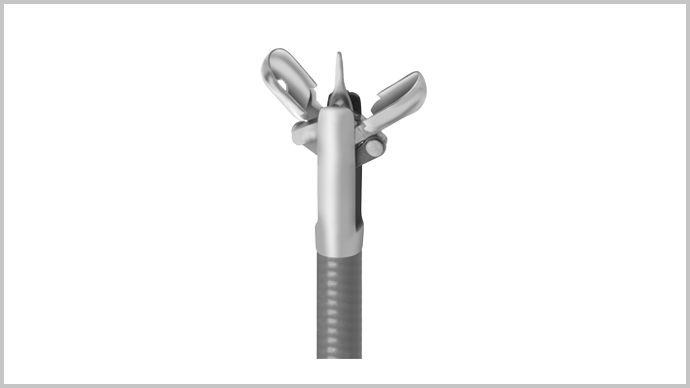

- with and without spike

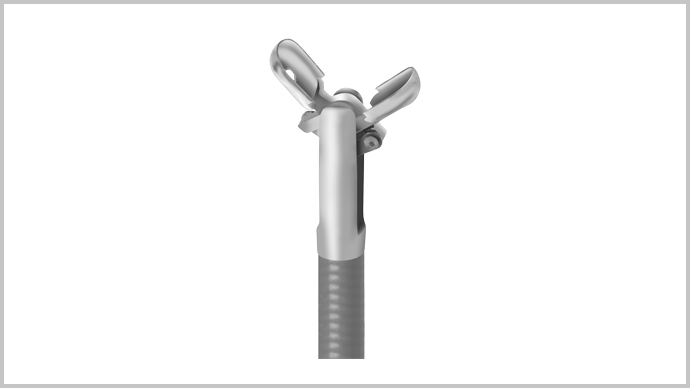

- fenestrated oval branches

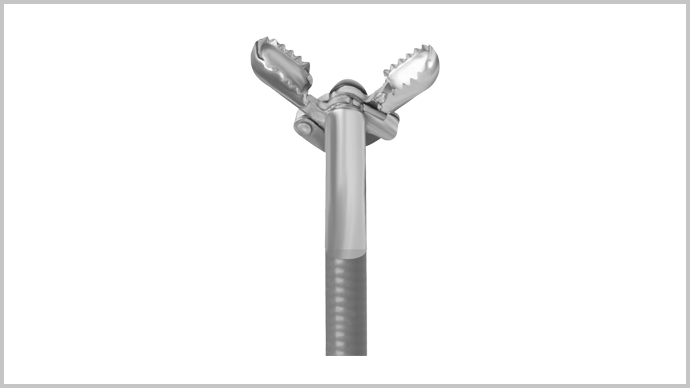

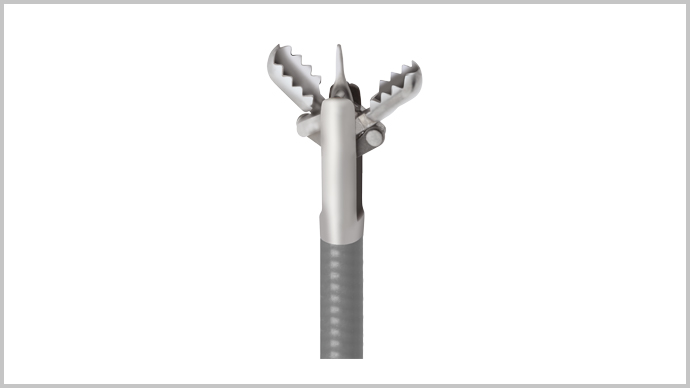

- Alligator types

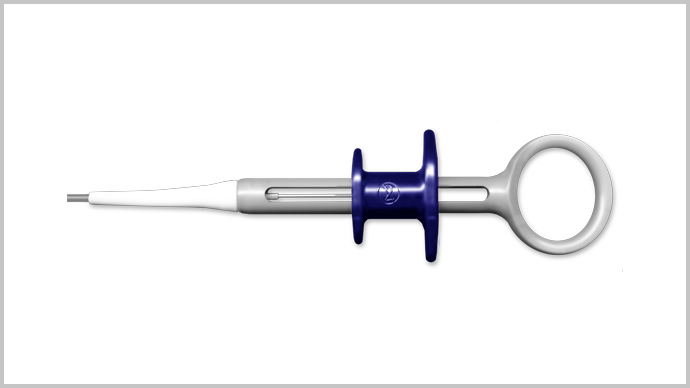

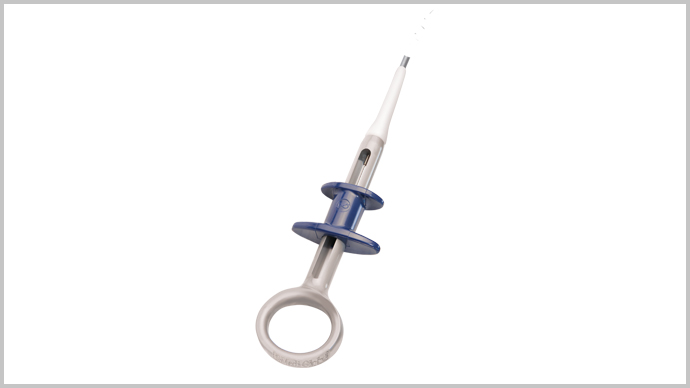

- handle with finger slide including HF connection
Product Images and Videos
Customer Service
More Information
Uncoated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-01-18-120 | Oval Fenestrated | 1.8 | 120 | 2.0 |
| GBF-02-18-120 | Oval Fenestrated with Spike | 1.8 | 120 | 2.0 |
Teflon-coated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-21-18-120 | Oval Fenestrated | 1.8 | 120 | 2.0 |
| GBF-22-18-120 | Oval Fenestrated with Spike | 1.8 | 120 | 2.0 |
Uncoated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-01-23-180 | Oval Fenestrated | 2.3 | 180 | 2.8 |
| GBF-01-23-230 | Oval Fenestrated | 2.3 | 230 | 2.8 |
| GBF-02-23-180 | Oval Fenestrated with Spike | 2.3 | 180 | 2.8 |
| GBF-02-23-230 | Oval Fenestrated with Spike | 2.3 | 230 | 2.8 |
Uncoated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-03-23-230 | Alligator | 2.3 | 230 | 2.8 |
| GBF-04-23-230 | Alligator with Spike | 2.3 | 230 | 2.8 |
Teflon-coated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-21-18-160 | Oval Fenestrated | 1.8 | 160 | 2.0 |
| GBF-21-23-180 | Oval Fenestrated | 2.3 | 180 | 2.8 |
| GBF-21-23-230 | Oval Fenestrated | 2.3 | 230 | 2.8 |
| GBF-21-30-230 | Oval Fenestrated | 3.0 | 230 | 3.2 |
| GBF-22-18-160 | Oval Fenestrated with Spike | 1.8 | 160 | 2.0 |
| GBF-22-23-180 | Oval Fenestrated with Spike | 2.3 | 180 | 2.8 |
| GBF-22-23-230 | Oval Fenestrated with Spike | 2.3 | 230 | 2.8 |
| GBF-22-30-230 | Oval Fenestrated with Spike | 3.0 | 230 | 3.2 |
Teflon-coated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-23-23-230 | Alligator | 2.3 | 230 | 2.8 |
| GBF-23-30-230 | Alligator | 3.0 | 230 | 3.2 |
| GBF-24-23-230 | Alligator with Spike | 2.3 | 230 | 2.8 |
| GBF-24-30-230 | Alligator with Spike | 3.0 | 230 | 3.2 |
Bronchoscopy – Biopsy Forceps Standard
Uncoated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-31-18-120 | Oval Fenestrated | 1.8 | 120 | 2.0 |
| GBF-32-18-120 | Oval Fenestrated with Spike | 1.8 | 120 | 2.0 |
Bronchoscopy – Biopsy Forceps Standard
Teflon Coated Stainless Steel Spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-41-18-120 | Oval Fenestrated | 1.8 | 120 | 2.0 |
| GBF-42-18-120 | Oval Fenestrated with Spike | 1.8 | 120 | 2.0 |
Gastroscopy & Colonoscopy – Biopsy Forceps Standard
Uncoated stainless steel spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-31-23-180 | Oval Fenestrated | 2.3 | 180 | 2.8 |
| GBF-31-23-230 | Oval Fenestrated | 2.3 | 230 | 2.8 |
| GBF-32-23-180 | Oval Fenestrated with Spike | 2.3 | 180 | 2.8 |
| GBF-32-23-230 | Oval Fenestrated with Spike | 2.3 | 230 | 2.8 |
Gastroscopy & Colonoscopy – Biopsy Forceps Standard
Teflon Coated Stainless Steel Spiral
| Catalogue No. | Cup Shape | Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|
| GBF-41-23-180 | Oval Fenestrated | 2.3 | 180 | 2.8 |
| GBF-41-23-230 | Oval Fenestrated | 2.3 | 230 | 2.8 |
| GBF-42-23-180 | Oval Fenestrated with Spike | 2.3 | 180 | 2.8 |
| GBF-42-23-230 | Oval Fenestrated with Spike | 2.3 | 230 | 2.8 |
