Description

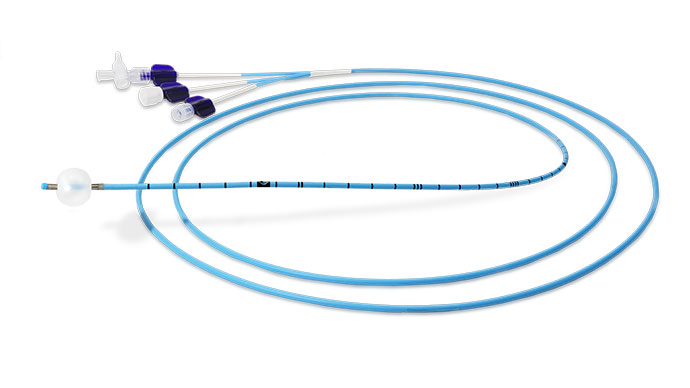

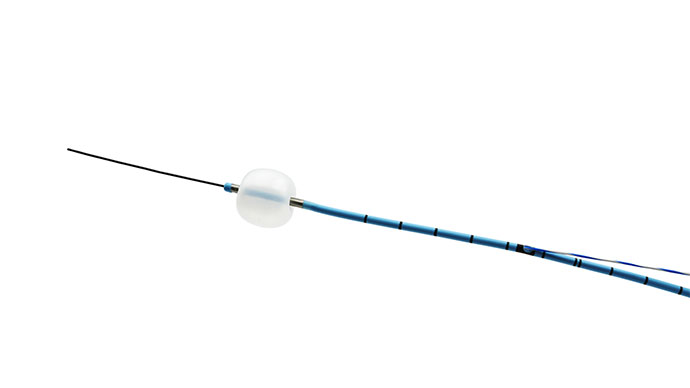

ShortTrack® Stone Extraction Balloon
3-stage balloon catheter, 3-lumen, including syringe* for maximum filling volume
- Safe insertion with guide wire in place
- Controlled papillary passage through distal tube graduation and X-ray markings
- Precise positioning in the bile duct with X-ray visible markings before and after the balloon
- Exact orientation using 10 mm markings
- Precise dilation thanks to multi-stage balloon system
* 3 syringes for GEB-47-25-035
Product Images and Videos
Customer Service
More Information
| Order code | External diameter of catheter (FR) | Balloon diameter filled (mm) | Max. air volume (ml) | Contrast medium application (depending on balloon) | Working length (cm) | Min. working channel diameter (mm) |
| GEB-47-25-035 | 7.5 | 9 - 13 - 16 | 1.5 - 2.5 - 5 | distal | 200 | 3.2 |
VE = 1 *3 Spritzen für GEB-47-25-035
