Description

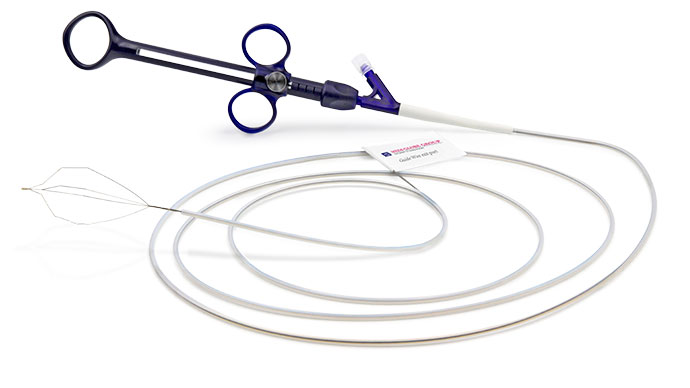

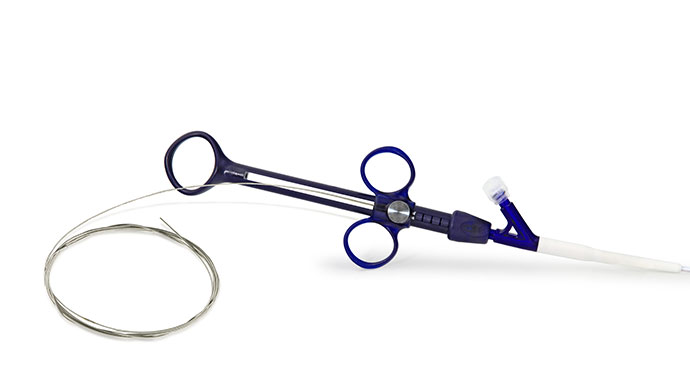

ShortTrack® Stone Extraction Basket

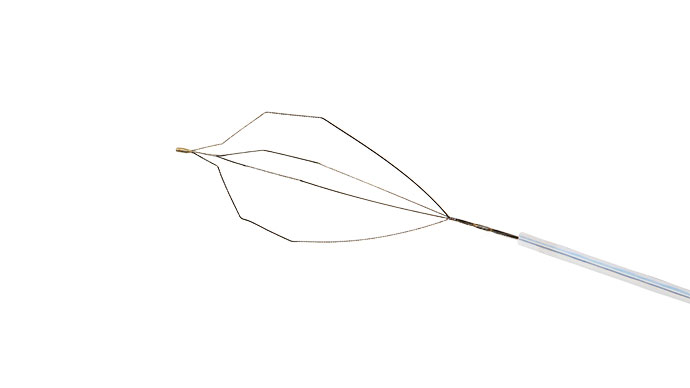

2-lumen, catheter diameter 2.7 mm, 4-fold multi-filament diamond-shaped
- From stone extraction to emergency lithotripsy possible through the scope (TTS)
- Easier guide wire exit thanks to integrated flag
- Easy removal of handle and tube in an emergency
- The right fit thanks to a choice of basket sizes and matching lithotripsy spirals
- Emergency lithotripsy possible without removing the duodenoscope
Product Images and Videos
![[Translate to Englisch:]](/fileadmin/user_upload/produkte/shorttrack_stone_extraction_basket_web03.jpg "[Translate to Englisch:]")
Customer Service
More Information
| Order code | For duodenoscope | Basket width when open (mm) | Basket length when open (mm) | Min. working channel diameter (mm) | Working length (cm) | Pull cord length (cm) |
| GEB-51-27-420 | OLYMPUS / FUJIFILM | 20 | 42 | 3.2 | 180 | 210 |
| GEB-51-27-425 | OLYMPUS / FUJIFILM | 25 | 52 | 3.2 | 180 | 210 |
| GEB-51-27-430 | OLYMPUS / FUJIFILM | 30 | 61 | 3.2 | 180 | 210 |
| GEB-52-27-420 | PENTAX | 20 | 42 | 3.2 | 180 | 210 |
| GEB-52-27-425 | PENTAX | 25 | 52 | 3.2 | 180 | 210 |
| GEB-52-27-430 | PENTAX | 30 | 61 | 3.2 | 180 | 210 |
Unit pack of 5
