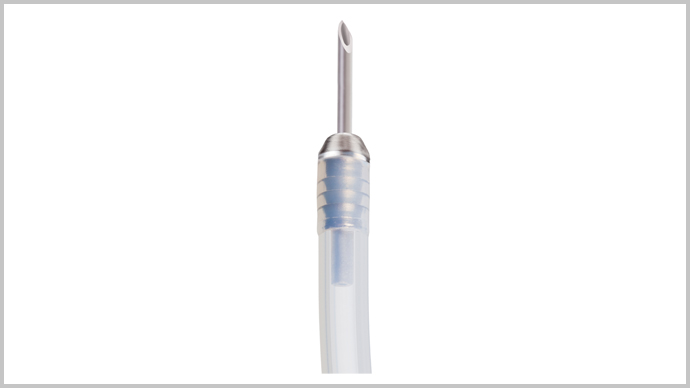

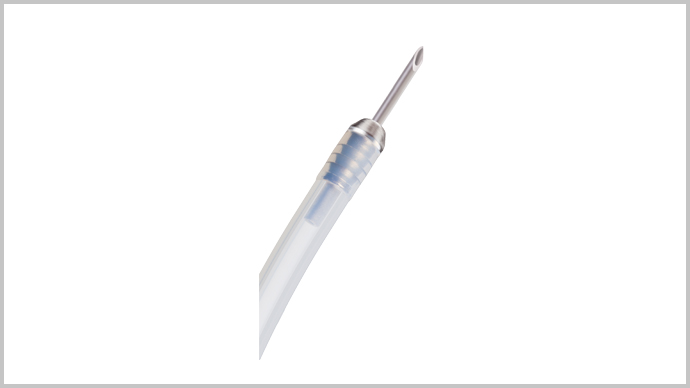

Description
- distal stainless steel needle in plastic tube
- distally conical metal head
- different needle lengths and diameters
- handle with locking mechanism to secure the needle
Product Images and Videos
Customer Service
More Information
Bronchoscopy - ECO-Injectra
Metal tip protection; needle locking mechanism (one hand operation)
Catalogue No. | Needle Diameter (mm / Gauge) | Needle Length (mm) | Sheath Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
---|---|---|---|---|---|
GSN-21-18-120 | 0.5/25 | 4 | 1.8 | 120 | 2.0 |
GSN-22-18-120 | 0.5/25 | 6 | 1.8 | 120 | 2.0 |
Gastroscopy - ECO-Injectra
Metal tip protection; needle locking mechanism (one hand operation)
Catalogue No. | Needle Diameter (mm / Gauge) | Needle Length (mm) | Sheath Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
---|---|---|---|---|---|
GSN-21-23-180 | 0.5/25 | 4 | 2.3 | 180 | 2.8 |
GSN-22-23-180 | 0.5/25 | 6 | 2.3 | 180 | 2.8 |
GSN-23-23-180 | 0.7/22 | 4 | 2.3 | 180 | 2.8 |
GSN-24-23-180 | 0.7/22 | 6 | 2.3 | 180 | 2.8 |
GSN-25-23-180 | 1.0/19 | 4 | 2.3 | 180 | 2.8 |
GSN-26-23-180 | 1.0/19 | 6 | 2.3 | 180 | 2.8 |
Colonoscopy - ECO-Injectra
Metal tip protection; needle locking mechanism (one hand operation)
Catalogue No. | Needle Diameter (mm / Gauge) | Needle Length (mm) | Sheath Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
---|---|---|---|---|---|
GSN-21-23-230 | 0.5/25 | 4 | 2.3 | 230 | 2.8 |
GSN-22-23-230 | 0.5/25 | 6 | 2.3 | 230 | 2.8 |
GSN-23-23-230 | 0.7/22 | 4 | 2.3 | 230 | 2.8 |
GSN-24-23-230 | 0.7/22 | 6 | 2.3 | 230 | 2.8 |
GSN-25-23-230 | 1.0/19 | 4 | 2.3 | 230 | 2.8 |
GSN-26-23-230 | 1.0/19 | 6 | 2.3 | 230 | 2.8 |
