Description

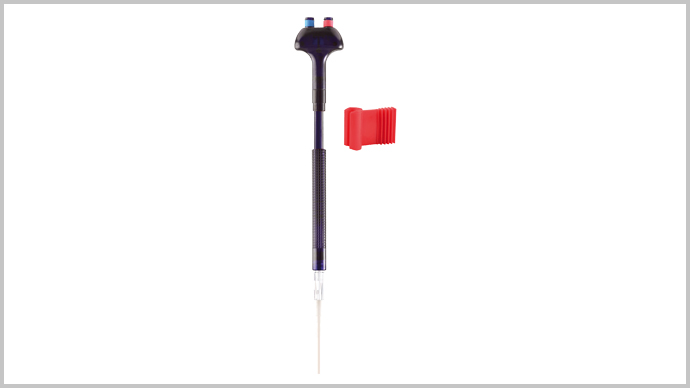

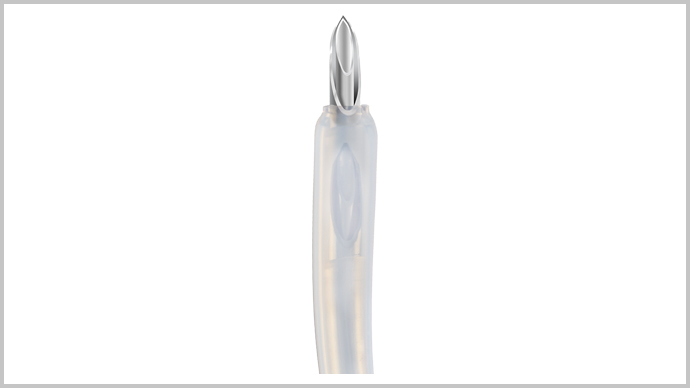

Medi-Globe fibrin needles equipped with a double-lumen coaxial needle: The components combine for the first time in the tissue. Color-coded Luer-Lock connectors are used for the targeted attachment of the fibrin components.
- instrument lengths of 180 and 230cm
- tube diameter 2.5 mm
- color-coded Luer-Lock connectors
- transport protection against accidental extension of the needle before use
Product Images and Videos
Customer Service
More Information
Gastroscopy
Double lumen; coaxial needle; mixing of the adhesive components in the tissue
Catalogue No. | Needle Diameter (mm) | Needle Length (mm) | Catheter Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
---|---|---|---|---|---|
GFN-01-04-180 | 1.2 | 4 | 2.5 | 180 | 2.8 |
GFN-01-06-180 | 1.2 | 6 | 2.5 | 180 | 2.8 |
Colonoscopy
Double lumen; coaxial needle; mixing of the adhesive components in the tissue
Catalogue No. | Needle Diameter (mm) | Needle Length (mm) | Catheter Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
---|---|---|---|---|---|
GFN-01-04-230 | 1.2 | 4 | 2.5 | 230 | 2.8 |
GFN-01-06-230 | 1.2 | 6 | 2.5 | 230 | 2.8 |
![](/fileadmin/_processed_/5/6/csm_L-GFN-SU-00-EN_LL-0025_Vers._6.0__022021__fibrin_needles_6ef6c6b1eb.png)
