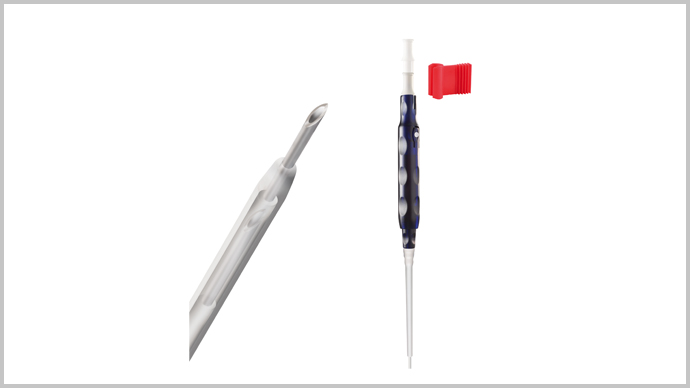

Description
- distal stainless steel needle in plastic tube
- different lengths and tube diameters
- handle with removable safety clip to secure the needle
- Luer lock connection
Product Images and Videos
Customer Service
More Information
Bronchoscopy - Injectra
Removable safety clip; Luer-Lock-mechanism
| Catalogue No. | Needle Diameter (mm / Gauge) | Needle Length (mm) | Sheath Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|
| GSN-04-23-120 | 1.0/19 | 6 | 2.3 | 120 | 2.8 |
| GSN-03-19-120 | 0.7/22 | 6 | 1.9 | 120 | 2.2 |
Gastroscopy - Injectra
Removable safety clip; Luer-Lock-mechanism
| Catalogue No. | Needle Diameter (mm / Gauge) | Needle Length (mm) | Sheath Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|
| GSN-02-23-180 | 1.0/19 | 4 | 2.3 | 180 | 2.8 |
| GSN-04-23-160 | 1.0/19 | 6 | 2.3 | 160 | 2.8 |
| GSN-04-23-180 | 1.0/19 | 6 | 2.3 | 180 | 2.8 |
| GSN-01-19-180 | 0.7/22 | 4 | 1.9 | 180 | 2.2 |
| GSN-03-19-160 | 0.7/22 | 6 | 1.9 | 160 | 2.2 |
| GSN-03-19-180 | 0.7/22 | 6 | 1.9 | 180 | 2.2 |
| GSN-05-19-180 | 0.5/25 | 4 | 1.9 | 180 | 2.2 |
| GSN-06-19-180 | 0.5/25 | 6 | 1.9 | 180 | 2.2 |
Colonoscopy - Injectra
Removable safety clip; Luer-Lock-mechanism
| Catalogue No. | Needle Diameter (mm / Gauge) | Needle Length (mm) | Sheath Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|
| GSN-02-23-230 | 1.0/19 | 4 | 2.3 | 230 | 2.8 |
| GSN-04-23-230 | 1.0/19 | 6 | 2.3 | 230 | 2.8 |
| GSN-01-19-230 | 0.7/22 | 4 | 1.9 | 230 | 2.2 |
| GSN-03-19-210 | 0.7/22 | 6 | 1.9 | 210 | 2.2 |
| GSN-03-19-230 | 0.7/22 | 6 | 1.9 | 230 | 2.2 |
| GSN-05-19-230 | 0.5/25 | 4 | 1.9 | 230 | 2.2 |
| GSN-06-19-230 | 0.5/25 | 6 | 1.9 | 230 | 2.2 |
