Polypectomy Snares

Description

The Medi-Globe polypectomy snare portfolio enables the user to remove smaller and larger lesions, even in difficult positions. The range includes oval, hexagonal and asymmetrical loop shapes with different loop sizes. The loops can be rotated through 360 ° and are available in monofilament or multifilament design, with and without an insulated tip.

The working lengths and tube diameters are suitable for all common duodeno and gastroenteroscopes. The instruments are intended for single use.

  • rotatable and symmetrical loops
  • loop width of 10mm, 15mm, 25mm, 35mm
  • mono- and multifilament versions
  • diameter Ø 2.5 mm
  • length 180cm / 230cm with and without insulated tip



Product Images and Videos

Customer Service
Any Questions about the product? +49 8032 973-0 sales (at) medi-globe.de

More Information

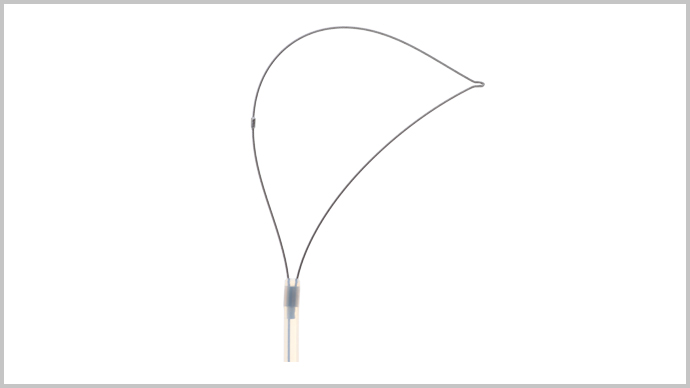

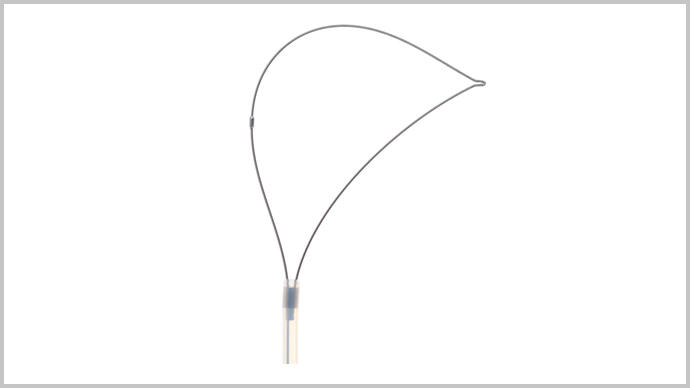

Polypectomy Snare

Asymmetrical loop, braided wire

Catalogue No. Loop Shape Loop Diameter (mm) Sheath Diameter (mm) Min. Accessory Channel (mm) Working Length (cm)
GPS-41-15-230 Asymmetrical 15 2.5 2.8 230
GPS-41-25-230 Asymmetrical 25 2.5 2.8 230



Polypectomy Snare

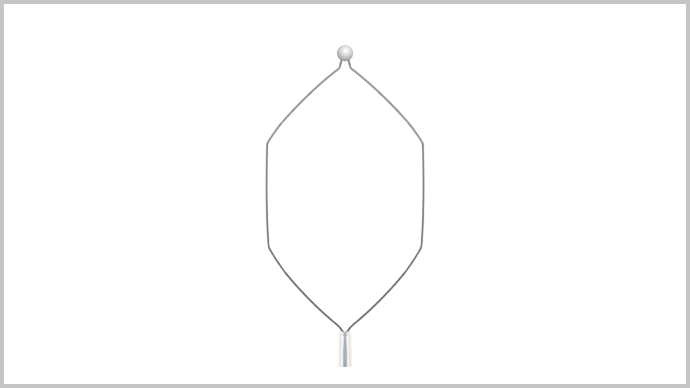

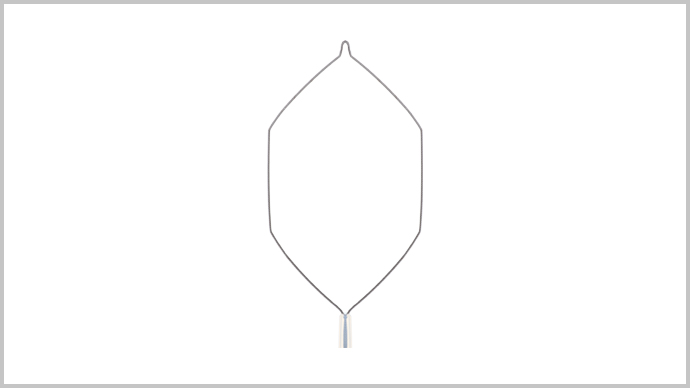

Hexagonal loop, braided wire

Catalogue No. Loop Shape Loop Diameter (mm) Sheath Diameter (mm) Min. Accessory Channel (mm) Working Length (cm)
GPS-22-25-180 Hexagonal 25 2.5 2.8 180
GPS-22-25-230 Hexagonal 25 2.5 2.8 230
GPS-32-25-180 Hexagonal Insulated Tip 25 2.5 2.8 180
GPS-32-25-230 Hexagonal Insulated Tip 25 2.5 2.8 230
GPS-22-35-180 Hexagonal 35 2.5 2.8 180
GPS-22-35-230 Hexagonal 35 2.5 2.8 230
GPS-32-35-180 Hexagonal Insulated Tip 35 2.5 2.8 180
GPS-32-35-230 Hexagonal Insulated Tip 35 2.5 2.8 230



Polypectomy Snare

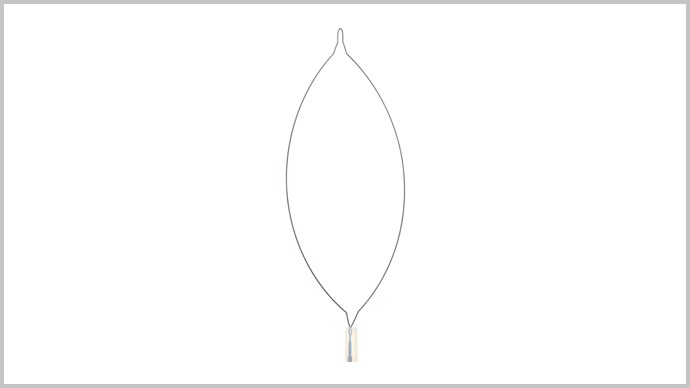

Oval loop, monofilament wire

Catalogue No. Loop Shape Loop Diameter (mm) Sheath Diameter (mm) Min. Accessory Channel (mm) Working Length (cm)
GPS-23-15-230 Oval 15 2.5 2.8 230
GPS-23-25-230 Oval 25 2.5 2.8 230
GPS-23-35-230 Oval 35 2.5 2.8 230



Polypectomy Snare

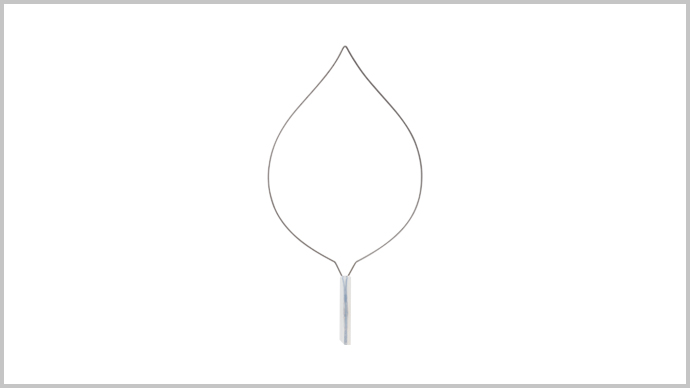

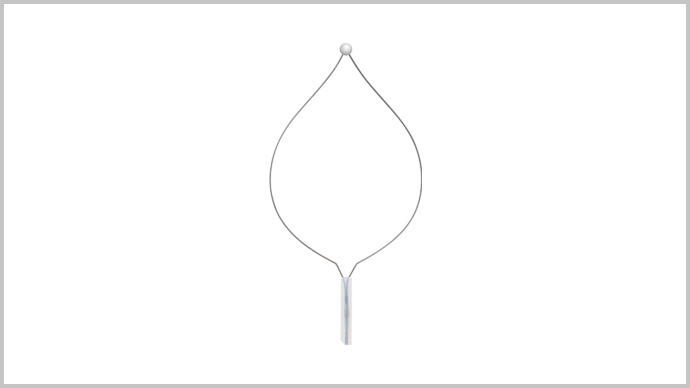

Oval loop, braided wire

Catalogue No. Loop Shape Loop Diameter (mm) Sheath Diameter (mm) Min. Accessory Channel (mm) Working Length (cm)
GPS-21-10-180 Oval 10 2.5 2.8 180
GPS-21-10-230 Oval 10 2.5 2.8 230
GPS-21-15-180 Oval 15 2.5 2.8 180
GPS-21-15-230 Oval 15 2.5 2.8 230
GPS-31-15-180 Oval Insulated Tip 15 2.5 2.8 180
GPS-31-15-230 Oval Insulated Tip 15 2.5 2.8 230
GPS-21-25-180 Oval 25 2.5 2.8 180
GPS-21-25-230 Oval 25 2.5 2.8 230
GPS-21-25-300 Oval 25 2.5 2.8 300
GPS-31-25-180 Oval Insulated Tip 25 2.5 2.8 180
GPS-31-25-230 Oval Insulated Tip 25 2.5 2.8 230
GPS-21-35-180 Oval 35 2.5 2.8 180
GPS-21-35-230 Oval 35 2.5 2.8 230
GPS-31-35-180 Oval Insulated Tip 35 2.5 2.8 180
GPS-31-35-230 Oval Insulated Tip 35 2.5 2.8 230
GPS-21-50-180 Oval 50 2.5 2.8 180
GPS-21-50-230 Oval 50 2.5 2.8 230

Polypectomy Snare

Oval loop, braided wire

Catalogue No. Loop Shape Loop Diameter (mm) Sheath Diameter (mm) Min. Accessory Channel (mm) Working Length (cm)
GPS-01-15-180 Oval 15 2.5 2.8 180
GPS-01-15-230 Oval 15 2.5 2.8 230
GPS-11-15-180 Oval Insulated Tip 15 2.5 2.8 180
GPS-11-15-230 Oval Insulated Tip 15 2.5 2.8 230
GPS-01-25-180 Oval 25 2.5 2.8 180
GPS-01-25-230 Oval 25 2.5 2.8 230
GPS-11-25-180 Oval Insulated Tip 25 2.5 2.8 180
GPS-11-25-230 Oval Insulated Tip 25 2.5 2.8 230
GPS-01-35-180 Oval 35 2.5 2.8 180
GPS-01-35-230 Oval 35 2.5 2.8 230
GPS-11-35-180 Oval Insulated Tip 35 2.5 2.8 180
GPS-11-35-230 Oval Insulated Tip 35 2.5 2.8 230



Polypectomy Snare

Hexagonal loop, braided wire

Catalogue No. Loop Shape Loop Diameter (mm) Sheath Diameter (mm) Min. Accessory Channel (mm) Working Length (cm)
GPS-02-25-180 Hexagonal 25 2.5 2.8 180
GPS-02-25-230 Hexagonal 25 2.5 2.8 230
