Description
- ring markings
- 3-lumen variants, rotatable
- short wire compatibility
- version with pre-loaded guide wire
- variants with side cutting wire for a precise cutting process.
- types with semi-insulated cutting wire for safe and controlled papillary incision
- multifil or monofil cutting wire
Product Images and Videos
Customer Service
More Information

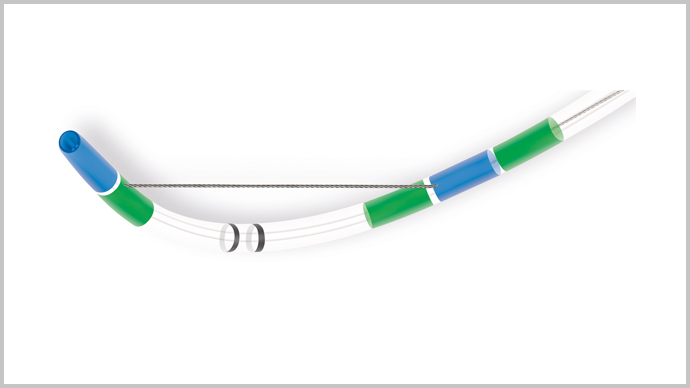

ShortTrack – 3 Lumen Sphincterotomes
| Order No. | Tip design | Cutting wire length | Type of cutting wire | Outer sheath diameter | Max. accepted guide wire |
|---|---|---|---|---|---|
| GSP-41-25-020 | 5 mm tapered tip | 20 mm | braided | 2,55 mm | .035“ |
| GSP-41-25-025 | 5 mm tapered tip | 25 mm | braided | 2,55 mm | .035“ |
| GSP-41-25-030 | 5 mm tapered tip | 30 mm | braided | 2,55 mm | .035“ |
| GSP-42-25-020 | 5 mm tapered tip | 20 mm | monofilament | 2,55 mm | .035“ |
| GSP-42-25-025 | 5 mm tapered tip | 25 mm | monofilament | 2,55 mm | .035“ |
| GSP-42-25-030 | 5 mm tapered tip | 30 mm | monofilament | 2,55 mm | .035“ |

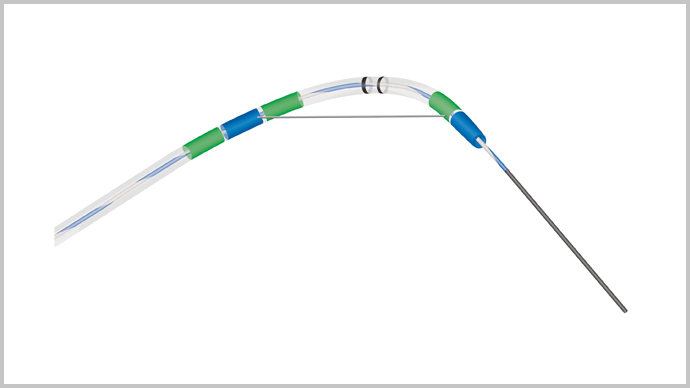

ShortTrack – 3 Lumen Sphincterotomes for Short-Wire Concept
pre-loaded, for use with EasyPass guide wires
| Order No. | Tip design | Cutting wire length | Type of cutting wire | Outer sheath diameter | Guide wire length |
|---|---|---|---|---|---|
| GSP-41-25-020PS | 5 mm tapered tip | 20 mm | braided | 2,55 mm | 260 cm |
| GSP-41-25-025PS | 5 mm tapered tip | 25 mm | braided | 2,55 mm | 260 cm |
| GSP-41-25-030PS | 5 mm tapered tip | 30 mm | braided | 2,55 mm | 260 cm |
| GSP-42-25-020PS | 5 mm tapered tip | 20 mm | monofilament | 2,55 mm | 260 cm |
| GSP-42-25-025PS | 5 mm tapered tip | 25 mm | monofilament | 2,55 mm | 260 cm |
| GSP-42-25-030PS | 5 mm tapered tip | 30 mm | monofilament | 2,55 mm | 260 cm |
ShortTrack – 3 Lumen Sphincterotomes for Long-Wire Concept
pre-loaded, for use with EasyPass guide wires
| Order No. | Tip design | Cutting wire length | Type of cutting wire | Outer sheath diameter | Guide wire length |
|---|---|---|---|---|---|
| GSP-41-25-020PL | 5 mm tapered tip | 20 mm | braided | 2,55 mm | 450 cm |
| GSP-41-25-025PL | 5 mm tapered tip | 25 mm | braided | 2,55 mm | 450 cm |
| GSP-41-25-030PL | 5 mm tapered tip | 30 mm | braided | 2,55 mm | 450 cm |
| GSP-42-25-020PL | 5 mm tapered tip | 20 mm | monofilament | 2,55 mm | 450 cm |
| GSP-42-25-025PL | 5 mm tapered tip | 25 mm | monofilament | 2,55 mm | 450 cm |
| GSP-42-25-030PL | 5 mm tapered tip | 30 mm | monofilament | 2,55 mm | 450 cm |
