Description
- Stainless steel needle
- round or beveled Nitinol stylet
- Twist-Lock for one-hand operation
- incl. VacLok ™ aspiration syringe (filling volume 5 - 20 ml)
Product Images and Videos
Customer Service
More Information
SonoTip® ProControl
With atraumatic (round) nitinol stylet; glass beads-blasted surface; incl. VacLokTM aspiration syringe (5–20 ml)
| Catalog No. | Description | Needle Diameter (Gauge / mm) | Tube diameter (mm) | Needle length adjustment (cm) |
|---|---|---|---|---|
| GUS-33-18-025 | EUS-Guided FNA System | 25/0.5 | 1.8 | 0–8.5 |
| GUS-33-27-025 | EUS-Guided FNA System with tip stabilizer to accommodate large working channels (3.2 mm – 3.8 mm) | 25/0.5 | 2.7 | 0–8.5 |
SonoTip® ProControl
With atraumatic (round) nitinol stylet; laser engraved surface; incl. VacLokTM aspiration syringe (5–20 ml)
| Catalog No. | Description | Needle Diameter (Gauge / mm) | Tube diameter (mm) | Needle length adjustment (cm) |
|---|---|---|---|---|
| GUS-33-18-022 | EUS-Guided FNA System compati- ble with guide wire max. .018“ | 22/0.7 | 1.8 | 0–8.5 |
| GUS-33-27-022 | EUS-Guided FNA System with tip stabilizer to accommodate large working channels (3.2 mm – 3.8 mm) compatible with guide wire max. .018“ | 22/0.7 | 2.7 | 0–8.5 |
SonoTip® ProControl

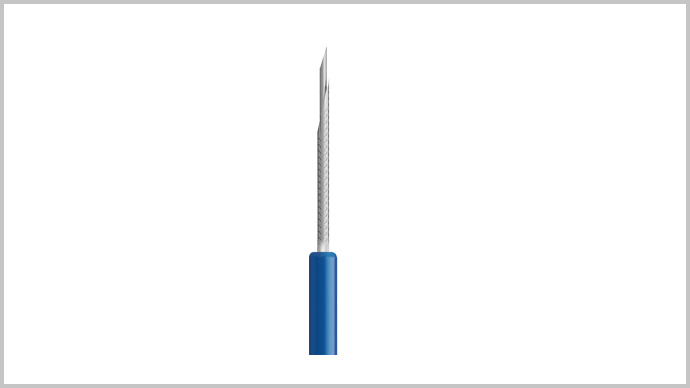

With traumatic (beveled) nitinol stylet; laser engraved surface; incl. VacLokTM aspiration syringe (5–20 ml)
| Catalog No. | Description | Needle Diameter (Gauge / mm) | Tube diameter (mm) | Needle length adjustment (cm) |
|---|---|---|---|---|
| GUS-34-18-022 | EUS-Guided FNA System compati- ble with guide wire max. .018“ | 22/0.7 | 1.8 | 0–8.5 |
| GUS-34-27-022 | EUS-Guided FNA System with tip stabilizer to accommodate large working channels (3.2 mm – 3.8 mm) compatible with guide wire max. .018“ | 22/0.7 | 2.7 | 0–8.5 |
SonoTip® ProControl
With atraumatic (round) nitinol stylet; laser engraved surface; incl. VacLokTM aspiration syringe (5–20 ml)
| Catalog No. | Description | Needle Diameter (Gauge / mm) | Tube diameter (mm) | Needle length adjustment (cm) |
|---|---|---|---|---|
| GUS-33-21-019 | EUS-Guided FNA System compatible with guide wire max. .030“ (recommended guide wire catalog no. GGW-08-30-400) | 19/1.1 | 2.1 | 0–8.5 |
